RG400 Coaxial Cable Double Shielded

View Larger Image

Product Brief :

RG400 cable is Double Shielded Coaxial cable complied with MIL-C-17/128, and is a popular choice as testing cable with SMA Connector.

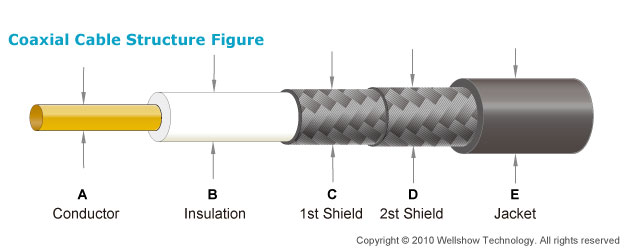

Cable Construction

	Conductor (A)	Insulation (B)	1^st Shield (C)	2^st Shield (D)	Jacket (E)
Diameter	0.98 mm/0.0384″	2.95 mm/0.116″			4.95mm/0.195″
Material	Silver plated copper	PTFE	Silver plated copper	Silver plated copper	FEP

Specification

Impedance: 50 +/-2 Ω
Capacitance: 29 pF/ft
Max. Voltage: 1900
Max. Frequency: 12.4 GHz
Conductor: Silver plated copper (19/0.2mm, 19/0.008″)
Minimum Bend Radius: 25.4mm/1.0″
