Warning: session_start(): Cannot start session when headers already sent in /home/rfcables/public_html/product_display.php on line 3 RG58/U Low Loss Coaxial Cable
RG58/U is Low Loss Coaxial Cable with solid conductor and Alum. foil binder between dielectric and shielding. It’s commonly be terminated with TNC Connector, BNC Connector, N Connector and SMA Connector.

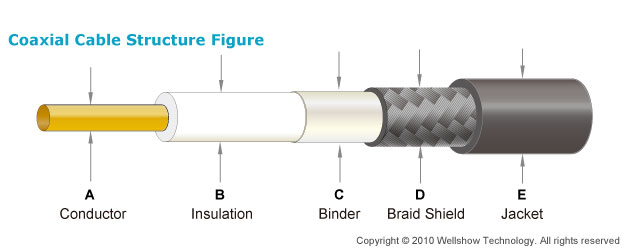

Cable Construction
Conductor (A)
Insulation (B)
Binder (C)
Braid Shield (D)
Jacket (E)
Diameter
1.02 mm
2.9 mm
3.4 mm
5.0 mm
Material
Bare Copper Wire
Foam polyethylene
Aluminum Foil
Tinned Copper Wire
PVC
Specification
Impedance: 53 Ω
Capacitance: 83 pF/m
Conductor: Bare Copper Wire (1/1.02mm)
Shield Coverage: 98%
Minimum Bend Radius: min. 20mm
