General Specifications |
|
Cable Type |
Stranded loose tube |
|
Construction Type |
Armored |
|
Subunit Type |
Gel-free |
|
|
|
Construction Materials |
|
Fiber Type Solution |
TeraSPEED®, zero water peak single-mode fiber |
|
Total Fiber Quantity |
2 |
|
Fiber Type |
TeraSPEED®, zero water peak single-mode fiber |
|
Fiber Type, quantity |
2 |
|
Fibers Per Subunit, quantity |
2 |
|
Jacket Color |
Black |
|
Jacket UV Resistance |
UV stabilized |
|
|
|
Dimensions |
|
Buffer Tube/Subunit Diameter |
2.50 mm | 0.10 in |
|
Cable Weight |
129.0 lb/kft | 192.0 kg/km |
|
Diameter Over Jacket |
15.00 mm | 0.59 in |
|
Filler, quantity |
4 |
|
Subunit, quantity |
1 |
|
|
|
Physical Specifications |
|
Minimum Bend Radius, loaded |
22.5 cm | 8.9 in |
|
Minimum Bend Radius, unloaded |
15.0 cm | 5.9 in |
|
Tensile Load, long term, maximum |
180 lbf | 800 N |
|
Tensile Load, short term, maximum |
2700 N | 607 lbf |
|
Vertical Rise, maximum |
426.0 m | 1397.6 ft |
|
|
|
Environmental Specifications |
|
Environmental Space |
Aerial, lashed | Buried |
|
Installation Temperature |
-30 °C to +70 °C (-22 °F to +158 °F) |
|
Operating Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
|
Storage Temperature |
-40 °C to +75 °C (-40 °F to +167 °F) |
|
|
|
Mechanical Test Specifications |
|
Compression |
250 lb/in | 44 N/mm |
|
Compression Test Method |
FOTP-41 | IEC 60794-1-2, Section 7 |
|
Flex |
35 cycles |
|
Flex Test Method |
IEC 60794-1-2, Section 10 | FOTP-104 |
|
Impact |
3.80 ft lb | 5.15 N-m |
|
Impact Test Method |
FOTP-25 | IEC 60794-1-2, Section 8 |
|
Strain |
See long term and short term tensile loads |
|
Strain Test Method |
FOTP-33 | IEC 60794-1-2, Section 5 |
|
Twist |
10 cycles |
|
Twist Test Method |
FOTP-85 | IEC 60794-1-2, Section 11 |
|
Water Penentration |
24 h |
|
Water Penentration Test Method |
FOTP-82 | IEC 60794-1-2, Section 24 |
|
|
|
Environmental Test Specifications |
|
Cable Freeze |
-2 °C | 28 °F |
|
Cable Freeze Test Method |
FOTP-98 |
|
Heat Age |
-40 °C to +85 °C (-40 °F to +185 °F) |
|
Heat Age Test Method |
Not applicable |
|
Low High Bend |
-30 °C to +60 °C (-22 °F to +140 °F) |
|
Low High Bend Test Method |
FOTP-28 | IEC 60794-1-2, Section 28 |
|
Temperature Cycle |
-40 °C to +70 °C (-40 °F to +158 °F) |
|
Temperature Cycle Test Method |
FOTP-3 | IEC 60794-1-2, Section 22 |
|
|
|
Qualification Specifications |
|
Cable Qualification Standards |
ANSI/ICEA S-87-640-2006 | EN 187105 | Telcordia GR-20-CORE Issue 3 |
)

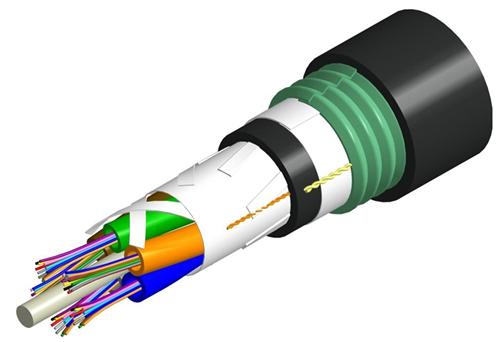

View Larger Image
